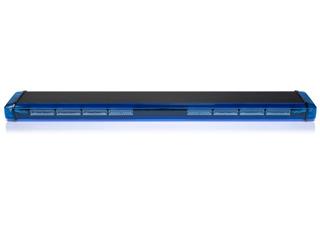

DBS 850

The DBS 850 product family does not only include the divided version, but also the full-length version. It impresses with its new, modern design with clear contours and technical innovations.


Configured to customer requirements

  • mounted using a modular system
  • easily adaptable to individual needs

Various mounting options

  • quick and easy mounting options for flat or curved vehicle roofs
  • vehicle-specific carrier systems offer additional mounting options

Easy operation

  • control via CiA447, FireCAN or analogue


Variety of length

  • length: 400 mm, 650 mm, 1100 mm, 1200 mm, 1400 mm, 1600 mm, 1800 mm



PRODUCT FEATURES

  • control: CiA447, FireCAN and analogue
  • 12 V / 24 V multi voltage
  • day/night switching
  • main beacon consisting of 4 corner modules
  • main beacon capable of multi-colour (e.g. can switch between blue and amber)
  • middle modules capable of multi-colour (up to 3 different colours per module)
  • extension of the light functions with up to 12 middle modules
  • use of the roof-mounting system of the DBS 4000/5000
  • EMC according to ECE-R 10



RANGE OF FUNCTIONS AVAILABLE

  • blue beacon class II (according to ECE-R 65)
  • amber beacon class II (according to ECE-R 65)
  • rear warning system amber (according to ECE-R 65)
  • direction indicator amber (front/rear) (according to ECE-R 148)
  • power flash blue (according to TA13a)
  • command vehicle light red or green
  • traffic advisor
  • search lights (alley light)
  • lighting for surrounding area (alley light)
  • working lights
